034 Motorsport - Audi B9/9.5 A4/S4/RS4/A5/S5/RS5 Street Density Lower Control Arm Kit - 034-401-1069
034 Motorsport Australia - Audi B9/9.5 A4/S4/RS4/A5/S5/RS5 Street Density Lower Control Arm Kit - 034-401-1069
034 Motorsport Density Line Lower Control Arms for Audi B9/B9.5 A4/S4/RS4 and A5/S5/RS5 models replace your vehicle's aging, worn lower control arms with performance-engineered Density Line units to improve handling precision beyond factory levels. Density Line Lower Control Arms replace the factory fluid-filled bushings with Density Line 65 durometer bushings.
- Replace worn factory parts
- Performance engineered
- Improved handling and precision
- Increased longevity than factory
- Rubber for performance and comfort
- Advanced quality accompanying hardware
- Elimination of fluid bushings (which leak!)

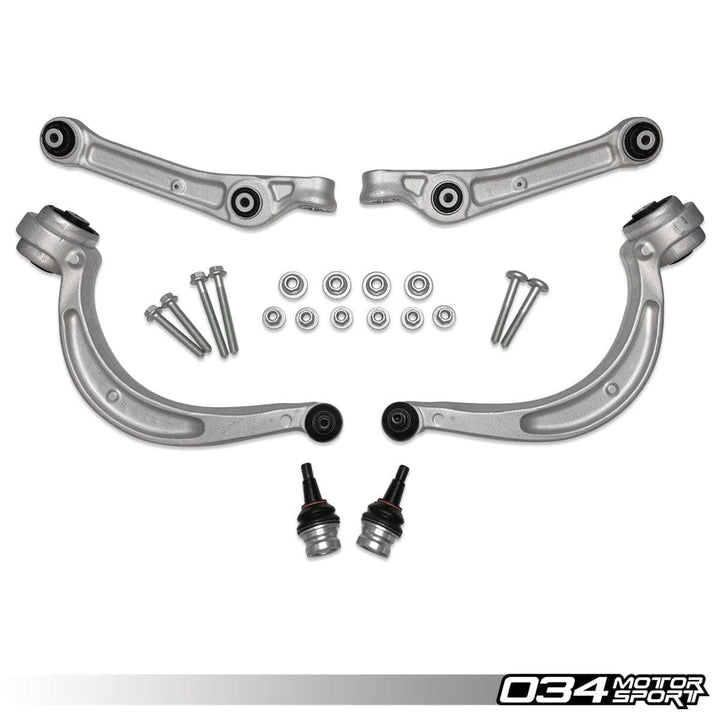

This kit includes four lower control arms, two new ball joints, and all necessary hardware for installation. Perfect for use with 034 Motorsport Density Line Adjustable Upper Control Arms!
The factory front lower control arms are an integral part of the B9/B9.5 Audi A4/S4/RS4 and A5/S5/RS5 suspension, but can start wearing out as early as 40,000 miles - especially on enthusiast-owned vehicles which are driven hard on the street or track. As the rubber bushings degrade and ball joints develop play, alignment is compromised and steering becomes less precise.
034 Motorsport's complete Density Line Lowers Control Arms are designed to be a performance replacement for all four of the factory front lower control arms. Featuring high-durometer rubber bushings and high-quality ball joints, Density Line Lower Control Arms are engineered to limit unwanted deflection in the suspension, resulting in tighter handling and more precise steering response than even brand new factory control arms can offer.
FEATURES:
- Complete, Drop-In Replacement for Factory Lower Control Arms
- Offers Improved Handling Feel & Steering Precision
- High-Durometer Rubber Bushings (65 Durometer)
- Solid Rubber Bushings Eliminate OE Arm Bushings Fluid Leaks
- Includes New Ball Joints
WHAT’S INCLUDED:
- Front Lower Control Arms - Front (Left & Right)
- Front Lower Control Arms - Rear (Left & Right)
- Ball Joints (Pair)

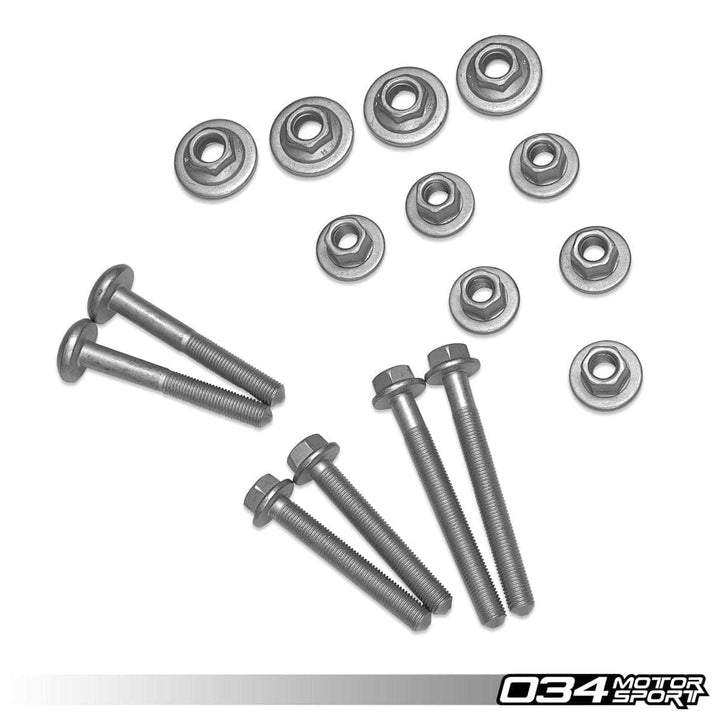

- Lower Control Arm Installation Hardware Kit
FITMENT:
- 2017 - Present Audi A4 (B9/B9.5)
- 2017 - Present Audi S4 (B9/B9.5)
- 2018 - Present Audi RS4 (B9/B9.5)
- 2017 - Present Audi A5 (B9/B9.5)
- 2017 - Present Audi S5 (B9/B9.5)
- 2018 - Present Audi RS5 (B9/B9.5)
- 2017 - Present Audi Allroad (B9/B9.5)
OE PART INTERCHANGE:
- Control Arm Front Left: 8W0 407 151 A/B/C/D
- Control Arm Front Right: 8W0 407 152 A/B/C/D
- Control Arm Rear Left: 8W0 407 693 B
- Control Arm Rear Right: 8W0 407 694 B
- Ball Joint Front Right and Left: 8W0 407 689 B
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | A4 | 2017+ | B9/B9.5 | 2.0 TFSI |
| Audi | A5 | 2017+ | B9/B9.5 | 2.0 TFSI |
| Audi | allroad | 2017+ | B9/B9.5 | 2.0 TFSI |
| Audi | RS5 | 2018+ | B9/B9.5 | 2.9 TFSI |
| Audi | S4 | 2017+ | B9 | 3.0 TFSI |
| Audi | S5 | 2017+ | B9/B9.5 | 3.0 TFSI |
The installation of your Density Line Lower Control Arm Kit, B9/B9.5 Audi A4/S4/RS4, A5/S5/RS5 is a straightforward process that will take approximately 4 hours to complete. You can access our detailed installation guide by clicking the icon on the left.
Download the Density Line Lower Control Arm Kit, B9/B9.5 Audi A4/S4/RS4, A5/S5/RS5 Install Guide
