034 Motorsport Australia - P34 Cold Air Intake - Audi B9 A4/A5 2.0 TFSI (MAP) - 034-108-1012

* Please note this is for the MAP version intake - typically in the higher 180 kW models fitted with IS20 turbo's

* There is a MAF version available typically for lower 140 kW models (034-108-1023)

Significant effort went into developing this comprehensive performance intake solution for the longitudinal EA888 2.0T Gen 3 engine found in the latest generation Audi A4/Allroad & A5. Subsequently, the P34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful airbox design.

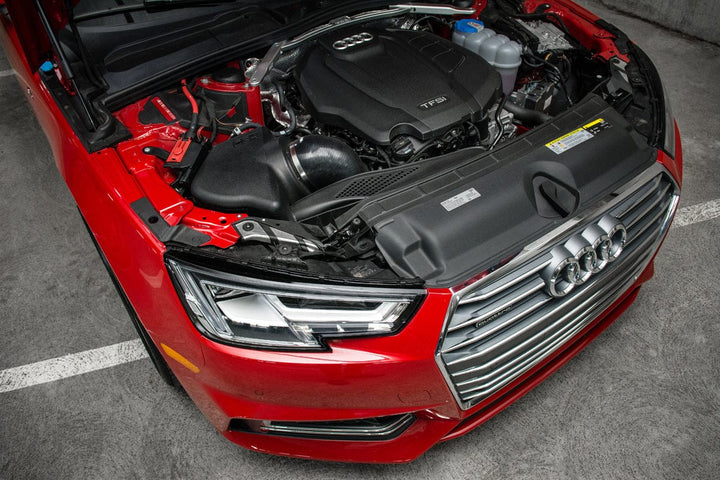

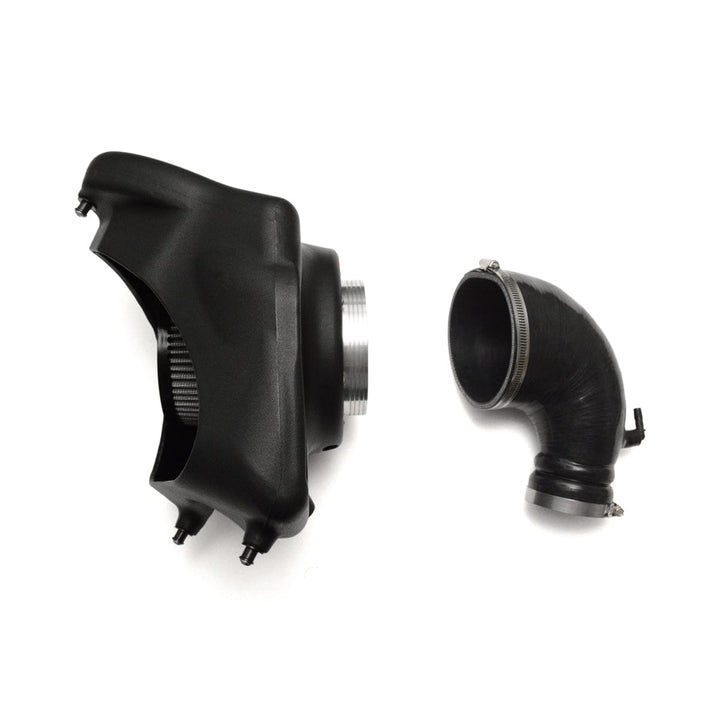

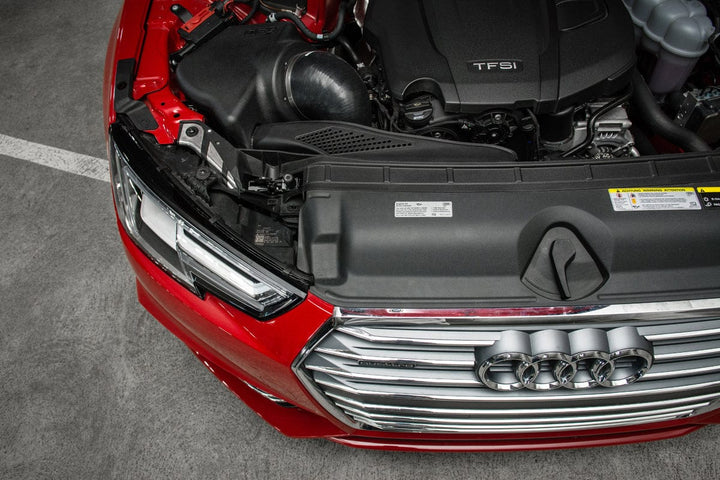

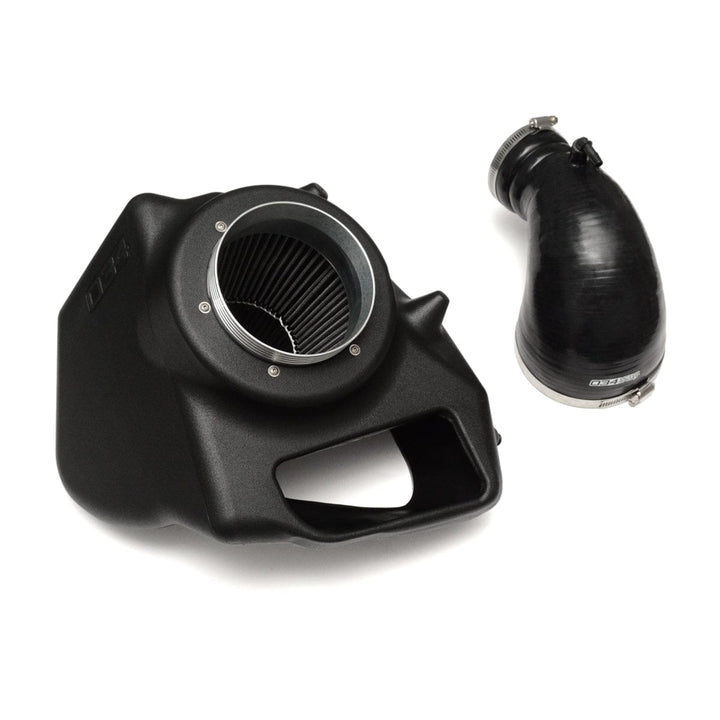

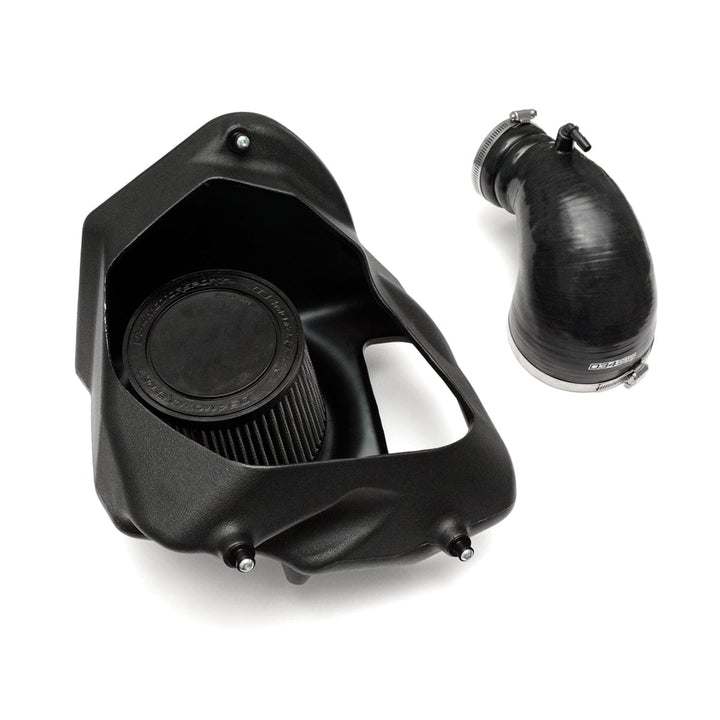

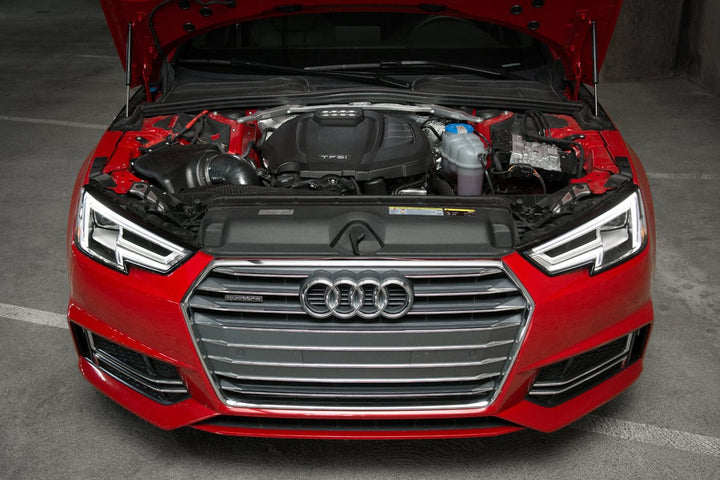

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the P34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a CNC-machined billet aluminum velocity stack feeding a reinforced silicone turbo inlet pipe.

Please confirm yours is the top image as that is what this intake is designed for. We also have an intake for the MAF version

P34 COLD AIR INTAKE SYSTEM FEATURES

• Developed In-House by 034Motorsport's Engineering Team
• Dyno-Proven Horsepower & Torque Gains
• Increased Airflow to Turbocharger Inlet
• Enhanced Engine & Induction Sounds
• Improved Throttle Response
• Superb Fit & Finish to Match Factory Engine Bay
• Stealthy OEM+ Design Utilizes Factory Inlet & Heat Shield

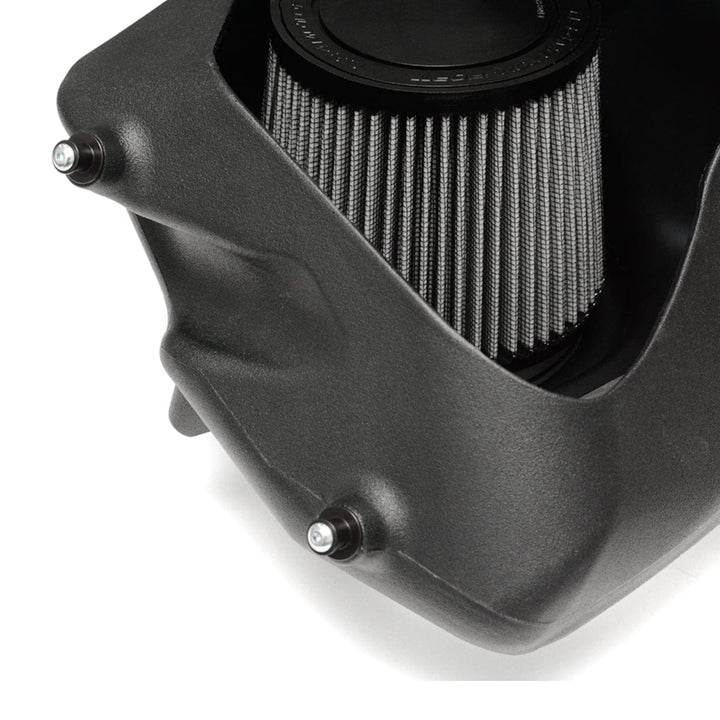

• Massive 5" Inlet Conical Air Filter
• CNC-Machined Billet Aluminum Velocity Stack
• Large-Diameter CFD-Optimized Turbo Inlet Hose
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions

DYNO-PROVEN PERFORMANCE GAINS

The P34 Cold Air Intake System for B9 Audi A4/Allroad & A5 was engineered with performance in mind, and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the fruition of this design approach, the P34 Cold Air Intake System yields a measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

PEAK HORSEPOWER & TORQUE

• Stock Intake: 253 Horsepower / 270 Foot-Pounds of Torque
• P34 Intake: 262 Horsepower / 274 Foot-Pounds of Torque

PEAK GAINS IN HORSEPOWER & TORQUE

• Peak Horsepower Gain: 10 HP @ 6,100 RPM
• Peak Torque Gain: 8 FT-LBS @ 6,100 RPM

PRESSURE DROP REDUCTION

• Stock Intake: Peak Pressure Drop of 0.58 PSI at 6,300 RPM
• P34 Intake: Peak Pressure Drop of 0.10 PSI at 6,300 RPM

P34 COLD AIR INTAKE SYSTEM PERFORMANCE DATA

APPLICATION GUIDE

• 2017 - Present Audi A4  (B9)
  • 2.0 TFSI (180 KW)
• 2017 - Present Audi Allroad  (B9)
  • 2.0 TFSI (180 KW)
• 2018 - Present Audi A5 (B9)
  • 2.0 TFSI (180 kW)

Fitment Note: We recommend visually verifying your intake system to ensure that it does not have a MAF (mass airflow) sensor attached to the airbox. The 034Motorsport P34 Cold Air Intake is only for vehicles without a MAF attached directly to the factory airbox.
