034 Motorsport - Engine Mount (x1) - Audi B8/8.5 A4/A5/Q5 2.0 TFSI - 034-509-0061-SD

034 Motorsport Australia - Engine Mount (x1) - Audi B8/8.5 A4/A5/Q5 2.0 TFSI - 034-509-0061-SD.

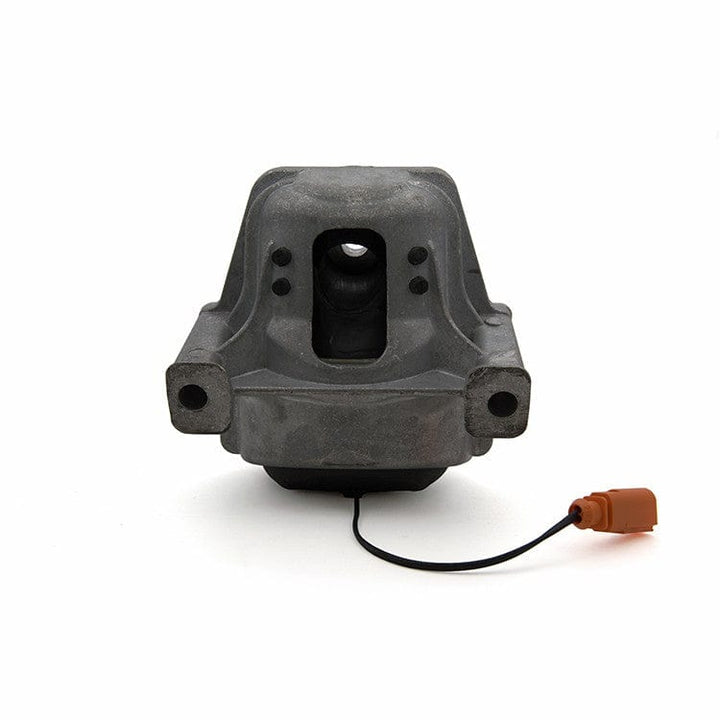

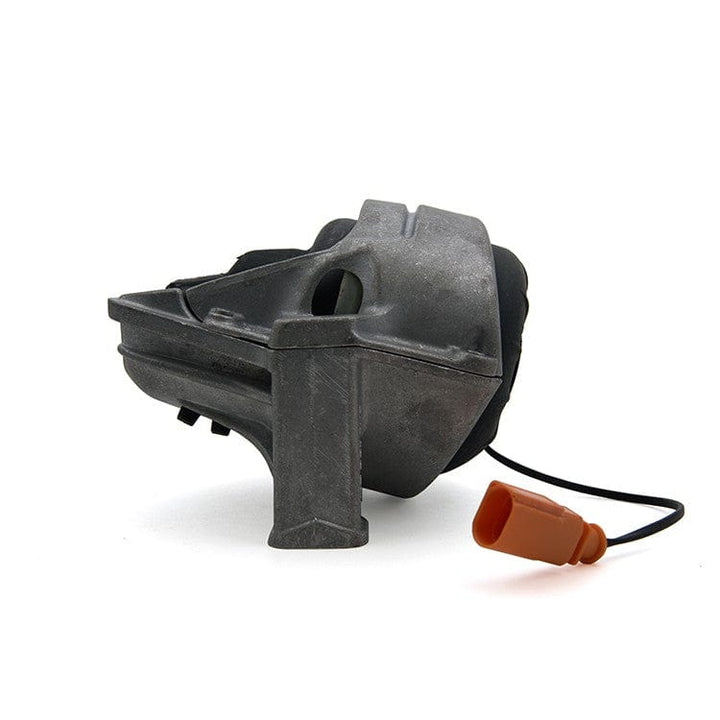

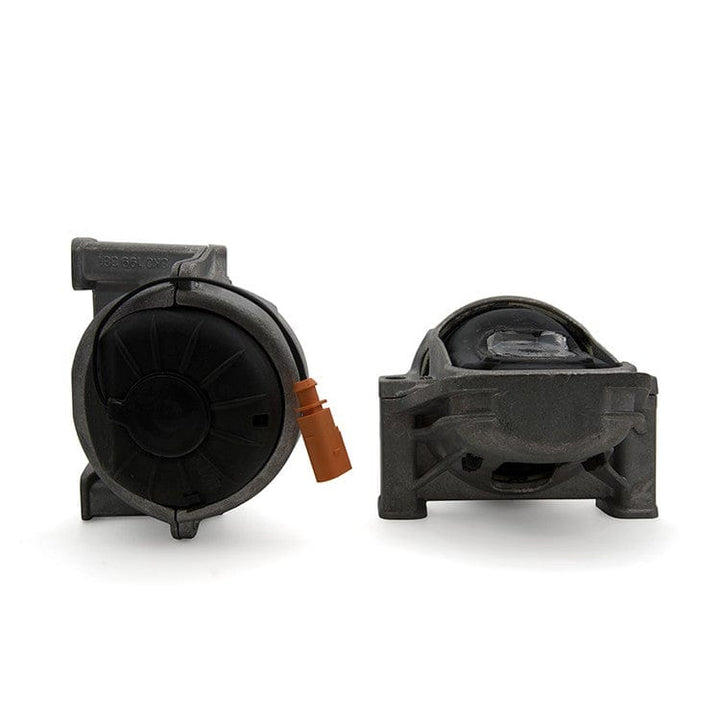

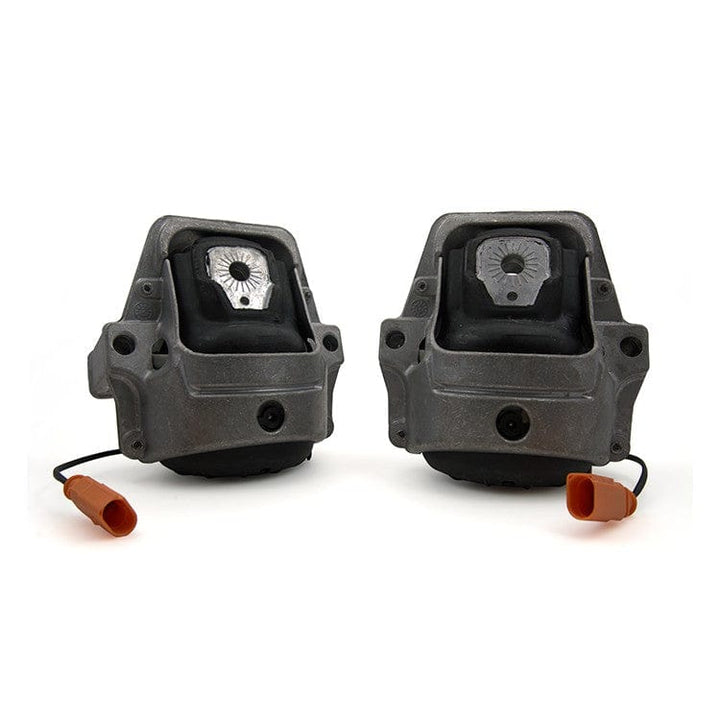

Introducing Street Density Engine Mounts for the B8/B8.5 Audi A4/A5/Q5 2.0 TFSI. These mounts are a performance upgrade over the factory A4/A5/Q5 mounts, manufactured with 45 durometer rubber damping medium to limit unwanted noise and vibration transfer into the cabin on 2.0 TFSI equipped vehicles.

* sold individually (purchase 2 for a set)

034Motorsport's Density Line Mounts are the new standard in comfort and performance. Our mounts are designed with performance in mind, and manufactured from higher-durometer rubber compared to stock for increased performance and durability, without sacrificing comfort. Density Line Mounts are void-free and fluid-free, eliminating the slop associated with the factory mounts, resulting in improved shifting feel and driving dynamics.

We recommend installing our popular Transmission Mount Insert along with these motor mounts to minimize unwanted drivetrain movement, with a slight increase of NVH.

Sold Individually (One Vehicle Requires 2 Mounts)

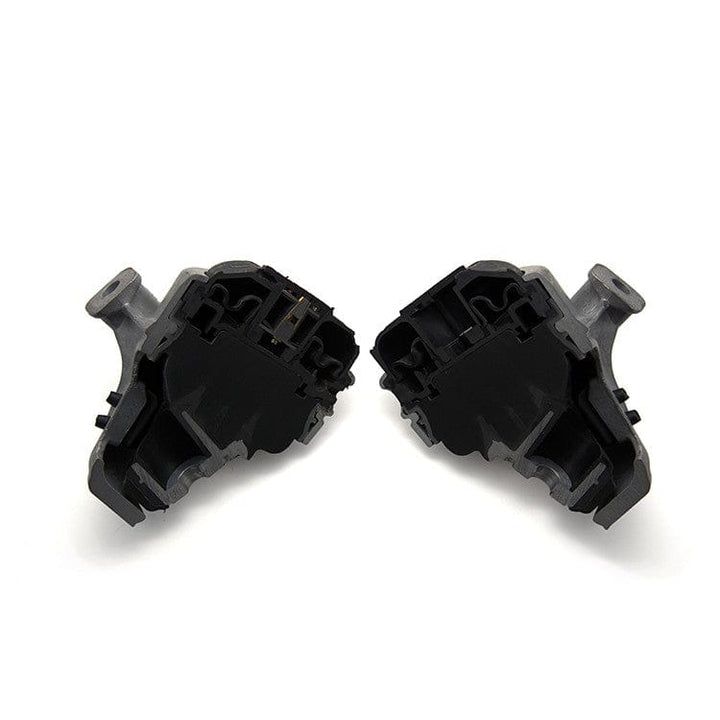

034Motorsport's Density Line Mounts are the new standard in comfort and performance. Our mounts are redesigned with performance in mind, and manufactured from high-durometer rubber for increased performance and durability, without sacrificing comfort. Density Line Mounts are void-free and fluid-free, eliminating the slop and the possibility of leakage and collapse associated with the factory mounts. The mount bodies are made from high quality cast aluminium using OEM production techniques and employ emulators to replicate the electronics of the factory engine mounts for plug-and-play installation. This ensures MIL-free operation for cars equipped with active engine mounts.

Density Line Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to the complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings. Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for applications that apply a shear force to the bushing during articulation. Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance and comfort.

Features:

• Manufactured from 45 Durometer (Street Density) Rubber with Void-Free Construction
• Built-In Emulator with Plug-In Connector for Vehicles Equipped with Factory Active Mounts
• Reduced Drivetrain Slop
• Decreased Engine Movement Under Load
• More Direct Power Transfer
• Improved Shifting Feel
• Complete Drop-In Replacement of Factory Engine Mounts

FITMENT GUIDE

INSTALLATION GUIDE

The installation of your 034Motorsport Street Density B8/B8.5 Audi Motor Mounts is a relatively involved process that will take approximately 4-5 hours to complete. You can access our detailed installation guide by clicking the icon on the left. We highly recommend having these mounts installed by an experienced mechanic. The installation process is the same as the factory mount remove and replace procedure. Our installation guide is meant to supplement the factory procedure.

 Download 034Motorsport Street Density B8/B8.5 Audi Motor Mounts Install Guide
