Flash tune your Audi B9 RS4/RS5 from home or on the go with '034SPI' Mobile app.
* Fits non OPF/PPF vehicles stage 1, 2, 3 and OPF/PPF stage 1 and 1.5.
034 Motorsport Dynamic+ Stage 1,Stage 2, and Stage 3 Tuning Software for the Audi B9/B9.5 RS4 & RS5 equipped with the EA839 2.9TT V6 engine is designed to transform the driving experience of your vehicle!
Flashed directly through your vehicle’s OBD-II port, 034Motorsport’s proprietary calibrations for the ECU safely and effectively increase the power output of the twin-turbocharged V6 in a refined manner. The result is a significant improvement in acceleration and throttle response, without any sacrifice in driveability or reliability.
Included at no extra cost is the Stage 1 Dynamic+ Performance TCU Software for the B9/B9.5 Audi RS4 & RS5 equipped with the AL552 8-Speed ZF8 transmission to further enhance the shifting and acceleration of your ZF8 Equipped 2.9TT!
Stage 2 for high flow downpipes - free of charge with stage 1 or 1.5
95, 98 & E85 fuel maps
Refined throttle mapping
Advanced thermal management
Enhanced crackles in Dynamic mode
Advanced volumetric Tuning strategies
Files for vehicles fitted with petrol particulate filters (OPF/PPF)
034 Motorsport offer flashing capabilities on multiple devices. Calibrate your vehicle with Windows PC, or the 034SPI Dynamic+ Smartphone Interface for MacOS, iOS mobile devices, and Android devices. Both programs have the same flashing capabilities, but 034SPI allows you to flash tunes wirelessly using the Dynamic+ Flashing Dongle and your mobile device, change fuel maps on the fly, configure live data displays, record and submit data logs to 034Motorsport's Tuning Support team, and utilize diagnostic support tools such as DTC/CEL code read/clear, and more!
034Motorsport Stage 1 Performance Software for the EA839 2.9TT engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with no hardware required. Due to the significant addition of torque from just Stage 1, the 034Motorsport AL552 ZF8 TCU tune is required to be run in parallel with our ECU tuning.
In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in order to provide improved throttle response and allow for more precise throttle modulation and further control of the vehicle when driving on track.
034Motorsport EA839 2.9TT Performance Software is flashed via the factory OBD-II port, and does not require any physical modification of the factory ECU. Stage 1 is available in 95 Octane, 98 Octane, and E85.
STAGE 1+ AUDI B9 RS5 - HPFP + E85
034Motorsport Stage 1+ Performance Software for the EA839 2.9TT engine running pump gas or ethanol is engineered to safely increase the horsepower and torque with the addition of anupgraded high pressure fuel pumpand no additional hardware. Due to the significant addition of torque from just Stage 1+, the 034Motorsport AL552 ZF8 TCU tune is required to be run in parallel with our ECU tuning.
Stage 1+ Performance Software for the EA839 2.9TT increases performance over Stage 1 running E85.If you are traveling somewhere without E85, 034Motorsport also offers 95 & 98 octane files to be used with anupgraded HPFP. This allows you to travel cross country without worry of having to plan for E85 stations or carrying gas jugs. Stage 1+ files do not increase performance figures on pump gas over the factory HPFP.
STAGE 3 HYBRID TURBOCHARGER
034Motorsport Stage 3 Performance Software for the EA839 2.9TT equipped with TTE720 Hybrid Turbochargers (running pump gas or ethanol) is engineered to safely increase the horsepower and torque beyond the stock turbocharger. Significant time was spent refining and safely optimizing the TTE720 Hybrid Turbocharger calibrations to ensure unrivalled drivability and uncompromised reliability. While many tuners can achieve great power figures that look impressive on a dyno sheet or a webpage, the key to a truly substantive and transformative software upgrade lies in the strategies employed to make power efficiently and safely.
In addition to power improvements, 034Motorsport's engineers spent a significant amount of time refining the throttle mapping in both Dynamic and Comfort modes to provide improved throttle response and allow for more precise throttle modulation with the addition of a hybrid turbocharger.
Complete in-house Engineering
034 Motorsport B9 Audi RS4 & RS5 EA839 2.9TT Dynamic+ Performance Software was developedentirely in-houseon 034 Motorsport's Development B9 RS5. Special inhouse tools that allow us to access the firmware and maps inside the factory ECU, this level of engineering is required to prevent work-arounds and band-aids that many aftermarket companies resort to.
E85 Tuning
NOTE:The E85 calibration is not a flex-fuel style tune.The tune will work with E85 directly from the pump. This tune requiresonly E85be pumped into the fuel tank. Gasoline blends and race fuel mixtures should not be used, and engine damage could occur if the incorrect fuel or octane is used. We strongly recommend an ethanol content gauge be used so that you can monitor the actual ethanol content at the pump you are using.
When switching fuels, it takes about 20-30 minutes of normal driving for the new tank of fuel to fully circulate through the system when filled at E. Please minimize load (don’t floor it!) until you have driven the car for at least 30 minutes. Ethanol content analyzers installed close to the fuel rail will also help you see when the ethanol has fully run through the system.
WHY IS AL552 ZF8 TCU SOFTWARE NECESSARY ON THE EA839 2.9TT?
Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.
034 Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU.Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.
We are happy to provide our Stage 1 Dynamic+ TCU tuning at no additional cost to the customer in order to ensure that you are maximizing the performance and reliability of your 2.9TT equipped vehicle!
ECU TUNING FEATURES
Increased Horsepower & Torque Throughout the Powerband
Improved Power Delivery, Acceleration, and Driving Characteristics
Available in 95 Octane, 98 Octane, and E85 Calibrations
Refined Throttle Mapping for Enhanced Throttle Response & Precision.
Speed Limiter Removed for Increased Top Speed
Track-Tested Calibrations Ensure Consistent Power Delivery
Flashed Directly Via the Factory OBD-II Port
DYNAMIC+ ECU FEATURES
THERMAL MANAGEMENT SAFETY STRATEGIES
With increased power, comes increased heat. With increased heat, comes the need for additional management. For both charge air temperature and engine coolant temperature, 034Motorsport has implemented key safety features to keep your engine running optimally and safely in virtually any condition - just like the OEM calibration. Substantial effort was spent on balancing the trade off of charge temp for power, and improving the compressor efficiency so that it doesn't generate too much charge temp.
Charge Air Temp:When the charge temp exceeds 80*C there is a reduction in power output. When the charge temp exceeds 85*C there is a more significant reduction in power output. This charge temp limitation is there to prevent knock events from excessive charge temps, which can severely damage a motor. With these safety measures in place, you can confidently drive your car, from the top of Pikes Peak to Death Valley, knowing the factory ECU has optimal performance and safety covered.
Coolant Temp/Fan Strategy:From the factory, Audi likes to run hotter water temps to reduce fluid friction losses from cooler, more viscous oil. While better for efficiency, this strategy becomes a safety issue when loads and heat are increased. 034Motorsport calibrators have rescaled the coolant temperature targets and fan control strategies to target lower coolant temperatures when in higher heat conditions, allowing the car to run within a safe heat range rescaled for the added heat that comes from tuning the engine. Once again, this means that 034Motorsport calibrators have kept your confidence in safety fully intact from the OEM configuration.
Turbocharger Intercooler Pump Optimizations:The coolant pump that circulates water in the turbocharger intercooler system is now optimized to reduce Intake Air Temperatures faster and at a lower overall set point.
LAUNCH CONTROL OPTIMIZATIONS
From the factory, conventional launch control strategies are not activated in the ECU. 034Motorsport’s skilled Calibration team has properly engineered and implemented true launch control functionality to the EA839 and AL552 ZF8. 034Motorsport engineers have refined and optimized the requested launch torque to ensure repeatable and consistent launches, capable of reducing 0-60 times by up to half a second depending on road conditions and tire grip. Unlike the factory ECU that tries to “push through the brakes” on a standing brake launch, the 034Motorsport Dynamic+ calibration will allow proper loading of the engine without pushing through the brakes as hard, and properly targets a specified RPM to launch at.
FUEL SYSTEM OPTIMIZATION
While E85 provides substantial increases in power, it requires about 30% more fuel than standard pump gasoline per ignition cycle. Utilizing a variety of fuel stratified injection strategies, 034Motorsport calibrators have further optimized the factory fueling system to be able to adequately support full E85 on factory hardware for Stage 1 tunes.
The main limiting factory in the 2.9TT fuel system is the factory high pressure fuel pump. 034Motorsport calibrators have optimized Stage 1+ files to add additional power while running E85 with the installation of an upgraded high pressure fuel pump.
In order to properly run 034Motorsport Stage 1+ files, you must be using an upgraded HPFP that has a 37% larger diameter piston over stock.
ACCURATE BOOST AND TORQUE REPORTING:
As with anything in life, it is always best to be truthful. This especially applies when it comes to reporting torque outputs in the ECU to the other control modules in the car, as well as displaying accurate boost readings to the driver via the boost gauge found on the Virtual Cockpit. With 034Motorsport Dynamic+ software, the ECU is reporting accurate torque values to critical systems like the TCU to ensure that all safety systems are intact in both control units, and the added torque from tuning is properly adjusted for when driving/shifting, including all safety systems designed to protect the engine and transmission
ENHANCED CRACKLES IN DYNAMIC MODE
Crackles are further enhanced in Dynamic mode! They can be toggled on or off via Drive Select. They will be on in Dynamic and off in Comfort. In Individual, crackles can be toggled on or off via Engine Sound.
VALVED-EXHAUST DELETE COMPATIBILITY
Crackles are further enhanced in Dynamic mode! They can be toggled on or off via Drive Select. They will be on in Dynamic and off in Comfort. In Individual, crackles can be toggled on or off via Engine Sound.
VOLUMETRIC EFFICIENCIES AND HOW TO OPTIMIZE FOR THEM:
This ECU tune allows for full performance when using aftermarket exhausts without exhaust flaps, or OEM exhaust with valves unplugged. Without this feature, running your car with the exhaust flap controller unplugged/with cancellers installed would result in derated performance. Volumetric efficiency (VE) is how well a motor can move air/fuel in and out of it’s combustion chamber, the higher the efficiency, the more of the air/fuel can be converted to torque and power. Every engine has a volumetric efficiency that varies with RPM. For this reason, every internal combustion engine has torque that varies with RPM; some motors, thanks to advanced features like variable valve and camshaft timing, can create exceptionally flat torque curves across a broad range of RPM simply due to optimizing VE using these advanced control features. Despite this ability, every modern engine, especially with forced induction, will have torque values that vary across the RPM band. In the case of the 2.9TT EA839, there is a dip in VE at 3000 RPM, or said a different way, VE is very efficient from 2-2500 RPM, and continues to be very efficient by 3500 RPM, but drops to a slightly lower level at 2700-3000 RPM. For reference, all of our dyno charts show a dip in TQ around 2700-3000 RPM for this very reason. It is important to note that this isn’t a problem with the tuning, and we could have very easily smoothed out the torque curve in our charts to minimize this, but we chose to leave it for the sake of accuracy and transparency.
The normal VE drop at 3000 is substantial, and more than what our final power numbers suggest, but instead of smoothing the curve to hide this, we chose to tackle it head on using our tuning expertise and technical mastery calibrating these ECU’s. A way to combat the VE drop is to increase boost through this region, but instead of simply turning up the boost using the boost control strategy, we re-engineered the ECU’s torque request function to target a higher TQ through this region. The result is more power and torque using the ECU’s factory control strategy, which keeps all factory ECU functionality and safety features in place. Ultimately we are able to make the dip less than the natural VE by raising boost a safe amount, but boost cannot make up all the difference. What we have done is optimized in performance, safety and functionality - just as if the factory had done it.
Keen observers will note that this dip is present in other company’s advertised charts too, but greatly smoothed over and reduced visually, so buyers should be aware. This dip is in the VE of the motor, it’s normal for all engines, and there is no reason to hide it or be anything less than transparent and honest about this motor’s performance.
As with any automatic transmission vehicle, the ECU and TCU computers work synchronously to properly apply torque to the vehicle's drivetrain in a safe and reliable manner. Within both the ECU and TCU, there are factory safety tables that limit overall torque output based upon what the factory first tuned the car for. The ECU reports the output of torque from the engine to the TCU, and the TCU decides if this is suitable, or too much. If it is too much, the TCU will command the ECU to reduce torque output based upon its safety tables.
034Motorsport takes a holistic approach with its Dynamic+ Tuning, and aims to retain as many OEM safety protocols as possible. While it is possible to tune around the factory TCU torque limiters from the ECU side, this is done at the expense of torque safety features that are integral in keeping your transmission running safely. 034Motorsport’s calibrators tune the ECU to work with the TCU to provide accurate torque values, and recalibrate the appropriate safety ranges for the TCU. Taking these extra steps to retain OEM safety systems on the ECU and TCU side is just one of the many reasons that Dynamic+ software provides substantial yet reliable performance increases.
OPTIMIZED SHIFT POINTS
In order to take advantage of the increased powerband from the turbochargers, Dynamic+ Tuning optimizes the shift points in all driving modes to maximize acceleration during wide open throttle scenarios.
IMPROVED SHIFT SPEEDS
To further enhance the acceleration of your Audi, the ZF8 shift times are dramatically decreased in all driving modes, which ultimately results in quicker acceleration. Shift times are now up to 70% faster!
Shift pressures are also increased in Sport Mode to maximize performance. In Sport Mode, you will notice less lazy shifts, more firm shifts, which ultimately results in quicker acceleration.
AMAX SHIFTING
AMAX Shifting is a shifting strategy that stands for “Acceleration Maximum.” These gear shifts are the fastest and quickest possible for optimal acceleration . These are activated in shifting after launching your vehicle from a stop using launch control.
AMAX is now activated in the 4>5, 5>6, and 6>7 shifts where it was previously disabled from the factory. When in AMAX mode, line pressures in the transmission have been optimized to safely increase shift speeds.
INCREASED LAUNCH STALL RPM
The launch stall RPM has been raised for a significant increase in force, allowing you to get off the line as fast as possible.
DELAY TIME BETWEEN LAUNCHES REDUCED
The delay time between launch control activations has been shortened. This is useful when drag racing to heat up tires using launch control, and re-activate quickly before launching down the drag strip!
Receive welcome email(after purchase) with 034 software account and user guide
Plug into OBD2 port and USB port on laptop & take read of stock ECU / TCU
Send 034 stock file details from software (very easy)
Plug back into OB2 port & USB and flash tune your ECU / TCU
Once you have taken the stock read of the ECU you can always flash your car back to stock at any time. You can also flash between stages.
The reading / flashing and software process isnot complicated. Everything is straight forward and anyone who has the computer skills to send an email can do this process.
Initial read time - 10 minutes First flash time - 20 minutes Flash back to stock - 10 minutes Upgrading files (stage 1 to 2) - 5 minutes Flashing between files and stages - 5 minutes
Q: What happens after I order my tuning cable and software?
A: We will EXPRESS post the cable and start a tuning order for you.
How long do I have to wait to receive my tuning download link and username?
From the minute your order is processed on the VAGParts website, you can expect a 1-3 business day fulfillment time to receive your download links and username from the 034 Motorsport tuning team. Please be on the lookout for this email, which will come from the email address "tuning@034motorsport.com"
Q: What is in the introductory email?
A: This is an email from 034Motorsport which includes the username for your account, a link to download the flashing software and the Getting Started user manual.
Q: I haven't got my introductory email
A: You may have to wait 1-3 business days to receive this email from the 034Motorsport team. Please also check your spam, updates, and other email tabs for the email from 034Motorsport. If it still hasn't come after a couple of days please contact VAGPARTS. Please note weekends are not working days.
Q: What do I need to tune my vehicle with a laptop?
A: Windows 10/11 laptop, strong/stable internet connection, Dynamic+ flashing cable, a 20-amp battery supply charger/maintaner, and tuning account access.
I have everything I need what do I do next?
Please download the 034 flashing client if you haven't already, and review the Getting Started guide. You'll need to register your username on 034 Motorsport's server, by inputting your username/email address in the applicable field, and clicking the "Forgot/Reset Password" link. This will send an email to you that will allow you to set your own password, which you'll need to use to log into the flashing client software. Once you are logged into the flashing client, please click on the controller that you wish to program (either ECU - engine, or TCU - transmission) and proceed through the steps listed in the "Getting Started" guide to flash that controller. The files labeled "Stock" are completely OEM software calibrations, as you would have received from the factory, so please only flash these if you wish to go back to stock tuning.
I received an error message stating that "No products are available for this controller", what do I do?
If you receive the error message "No products are available for this controller", please email tuning@034motorsport.com directly, and someone from their tuning support team will advise you on the steps that they will take to get you access to the files that were purchased.
A: This is NOT a difficult process. If you have the ability to open and email and send an email, this is the same level of computer literacy needed.
Q: How long does the flashing process take?
A: The total time to tune the car is around 30 mins. Flashing between files, upgrading and so on once you have done the first installation is a couple of minutes.
I need some technical support. Who do I contact?
Please email tuning@034motorsport.com and a dedicated tuning support representative will help address any concerns or questions you may have.
Q: My car already has a tune on it, how do I remove it?
A: You may need to flash your car back to stock. You can do this by flashing the car to stock using the 034Motorsport flashing portal.
Q: Do I have to flash my ECU and TCU?
A: Yes, these are separate control units and need to be individually flashed.
Q: What is 91 AKI and 93 AKI? RON to AKI?
A: 91AKI is 95 RON and 93 AKI is 98 RON. When flashing select the file appropriate to the fuel octane you are using.
Q: How long do I have to wait for my tuning introductory email?
A: 48 hours or 2 working days
Q: How long do I have for wait for my tuning files?
A: Please allow 72 hours or 3 working days for fulfilment
Q: What is the normal turn around for the entire process?
A: Please allow up to 4 working days

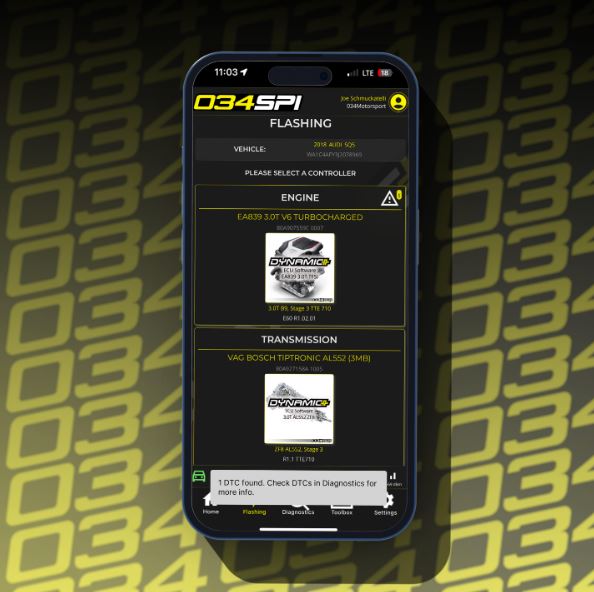

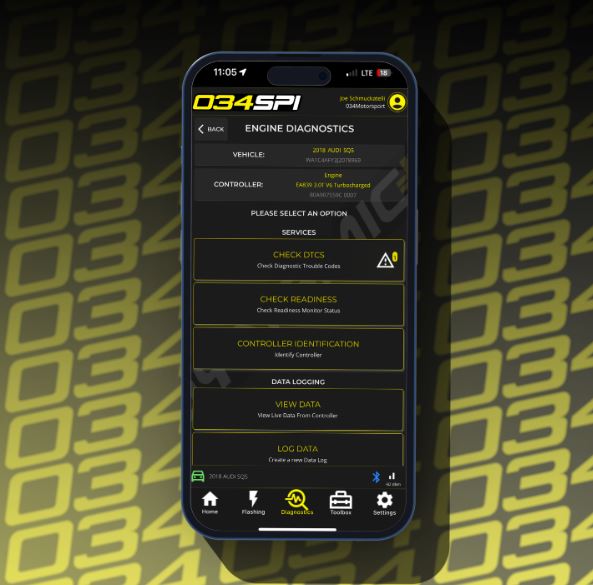

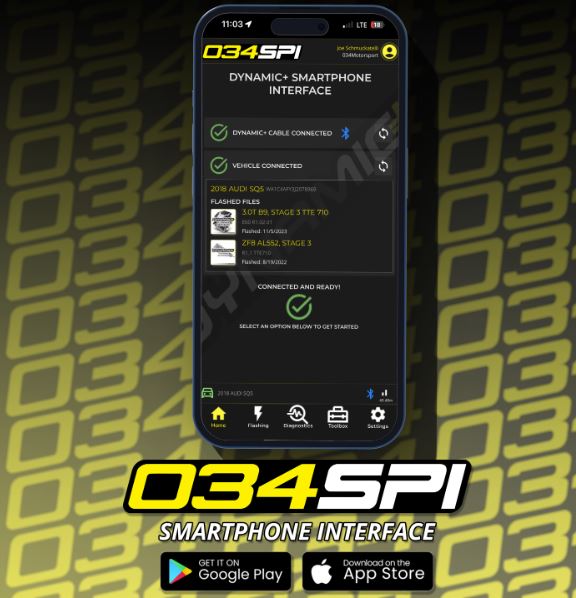

Mobile APP Tuning (034SPI)
Flash tune your vehicle with any mobile or tablet device of your choice!
What device can I use to flash tune my car?
Android auto phone or tablet
Apple phone, tablet or Apple Silicon-equipped laptops (M1, M2, M3).
1. Download your "getting started" flashing user guide 2. Download the "Dynamic+ flash tuning" software 3. Register your user name and password (from tuning introductory email) 4. Sign in to the "Dynamic Flash" software
What's Next?
Plug into your vehicles OBD II port with the 034 flash cable
Open the 034 tuning software
Identify your stock ECU and TCU software box code - upload this via the 034 software
Select your ECU calibration and flash tune your ECU and then TCU
Times for Delivery
From website order to tune introductory email - 48 Hours
From uploaded stock files to order fulfilment - 72 Hours
Normal maximum total time - 4 Business days
What if a file isnt ready yet?
Please contact tuning@034motorsport.com to let them know that a file was not available for your vehicle. A new file will be created and uploaded to the server for you ready for flashing - usually within 72 hours or 3 working days.
My tuning files are ready
The reading / flashing and software process is not complicated. Everything is straight forward and anyone who has the computer skills to send an email can do this process.
Initial read time - 10 minutes First flash time - 20 minutes Flash back to stock - 10 minutes Upgrading files (stage 1 to 2) - 5 minutes
Please run through the user manual and install your ECU file and or TCU files and if for some reason you run into any unexpected issues please email tuning@034motorsport.com
Fuel Ratings
Please note American fuel types use a different fuel rating system AKI.
Excellent ECU and TCU tune for RS4 B9. Very smooth with more linear throttle mapping relative to OEM. Flashing was very straightforward with the mobile device OBD adapter. Great product!
P
Paul Sampson
Switched to 034 and couldn't be happier
Stage 1 ecu and stage 2 tcu tune installed on my '19 RS5 Sportback today. The Android app worked flawlessly and no issues upgrading from the old APR ecu tune.
Immediate improvement to throttle input, seems more linear and the trans shift times have noticeably improved, plus more burbles from the exhausr. Overall a really refined package.
Awesome local support from Jonathan at Vagparts, who shipped the tuning cable promptly and answered all of my questions along the way. Thanks!
Dynamic + ECU Tuning
034Motorsport's Dynamic+ Performance Software provides reliable horsepower and torque increases through driver-centric calibrations that elevate driving enjoyment and precision. The Dynamic+ Tuning Philosophy emphasizes safety and reliability, with the goal of optimizing power delivery without compromising the longevity of the engine and related components.
Developed entirely in-house by 034Motorsport's engineers, Dynamic+ calibrations are the result of countless hours of dyno development and real-world track testing with multiple vehicles and varying environments.
OBD Port Tuning
Dynamic+ Performance Software is loaded directly to your factory Engine Control Unit (ECU) via the factory On-Board Diagnostic (OBD) port using 034Motorsport's Proprietary Dynamic+ Tuning Suite, unlocking more power, more torque, and quicker acceleration! No physical access or modification to the ECU is required, and it can be reverted to the original factory software at any time.
